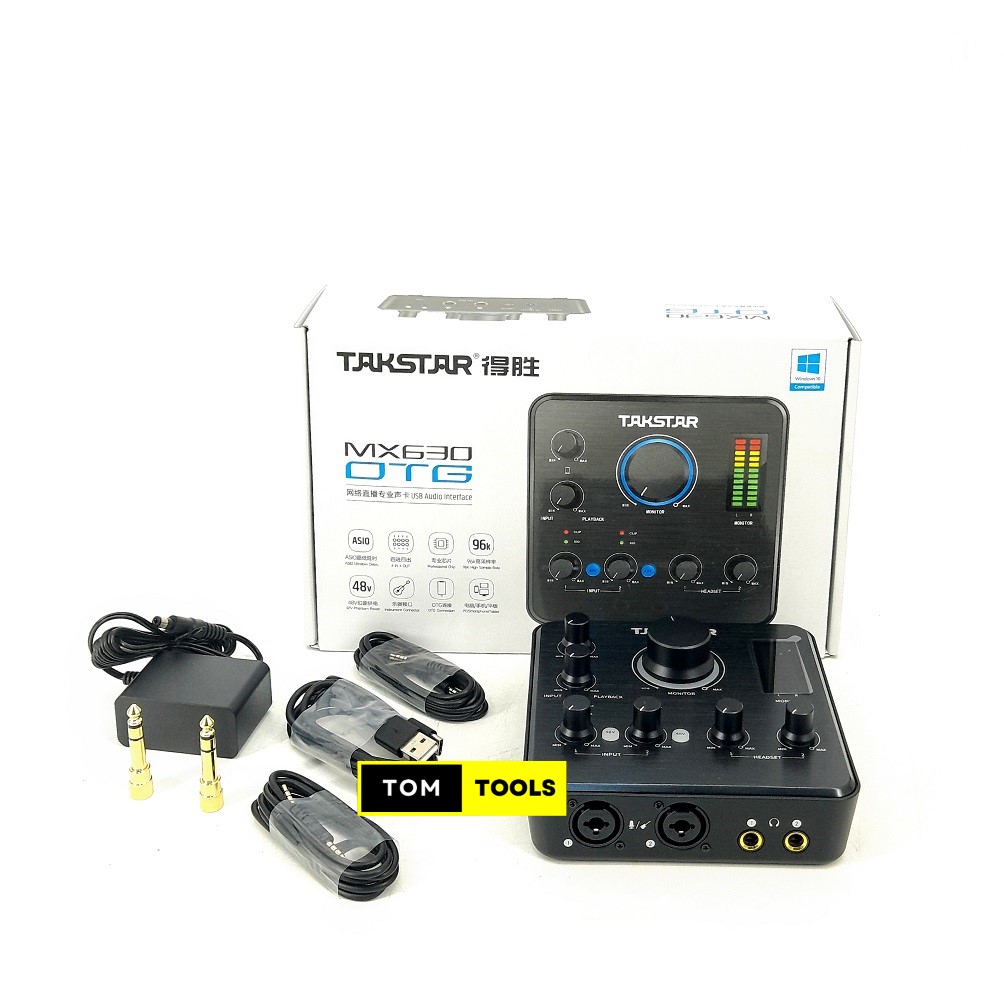

Takstar MX630 OTG USB Rechargeable Audio Interface

– Tailored for webcasting, karaoke and professional recording; compatible with Windows, macOS, iOS and Android. – Driver is WHQL Certified to ensure stability and compatibility with Microsoft Windows systems. – USB 2.0 standard for high-speed transmission and ultra-low latency. – Supports high-precision sampling at 24bit/96KHz for clear recording and playback. – Uses ASIO 2.0 driver standard; supports running more than two recording software simultaneously for webcast and professional recording. – Powerful monitoring and recording functions; supports group live stream and chatting without stutter. – Supports MME, WDM and DirectSound which enable sound signal transmission easily between the device and computer – Volume controls for microphone, earphone and speaker outputs, as well as for cell phone recording. – Equipped with two combo microphone/instrument input connectors. – OTG function provides lossless recording and live broadcast for cell phones. – Two Φ6.3 mm TRS balanced output L/R CH interface can be connected to active speakers. Mic/Line in 1-2: – Frequency Response：20Hz-20KHz（±1dB） – Dynamic Range：80dB，A- weighted – S/N Ratio：75dB，A- weighted – THD Noise：<0.025%(-72dB) – Intermodulation Distortion：-77dB ＠ 1KHz – Input Impedance：inst in，6.8KΩ，typical – Mic in：6.8KΩ，typical – Adjustable Gain：>50dB – Gain Range： 54dB Line/Accompaniment 3-4: – Frequency Response：20Hz-20KHz(±1dB) – S/N Ratio：100dB，A- weighted – THD Noise：<0.0031%(-90dB) – Dynamic Range：97dB，A- weighted – Max Input Level： 0dB gain：0dB Headphone output 1-2: – Frequency Response：20Hz-20KHz(±1dB) – Dynamic Range：99dB，A- weighted – S/N Ratio：103dB，A- weighted – THD Noise：<0.0056%(-85 dB) – Intermodulation Distortion：-75dB ＠ 1KHz – Power：90mW/100Ω – Output Impedance：75Ω – Load Impedance：32-600Ω   Line out L/R: – Frequency Response：20Hz-20KHz(±1dB) – Dynamic Range：98dB，A- weighted – S/N Ratio：102dB，A- weighted – THD Noise：<0.0125%(-78 dB) – Intermodulation Distortion：-65dB ＠ 1KHz – Output Impedance：75Ω – Load Impedance：32-600Ω – Max Output Level： 1.2 dBV General Specification: – Data Transmission：USB2.0 – Sample Ratio：44.1-96KHz/24bit – Power Supply：DC 12V 1A（external power supply） – Operation Temperature Range：0-40℃ – Dimension：140*140*33.5mm (L*W*H) – Net Weight：approx 465g Connections: – Cell Phone Connector：Φ3.5mm – Accompaniment Connector：Φ3.5mm – Mic Connector 1：XLR Φ6.35mm – Mic Connector 2：XLR Φ6.35mm – Headphone Connector 1：Φ6.35mm – Headphone Connector 2：Φ6.35mm – Speaker Connector：Φ6.35mm(L R) – Power Supply Connector：DC 12V 1A – Data Connector：USB 2.0 – OTG Port: Type-C
